assembleon label feeder

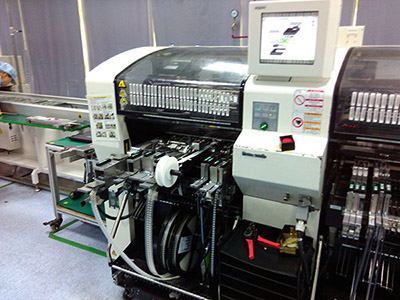

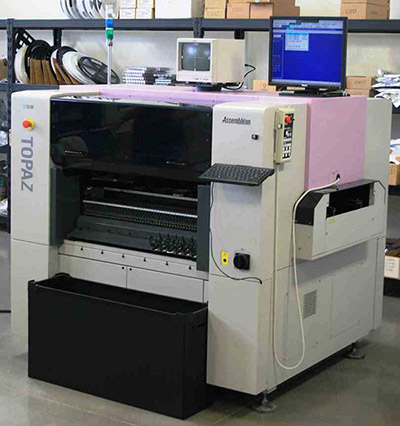

The Assembleon label feeder is an accessory that enables Assembleon SMT pick-and-place machines to automatically handle and place adhesive labels onto printed circuit boards (PCBs). These feeders are compatible with various Assembleon machine models, including the Topaz, Emerald, Sapphire, and MG series.

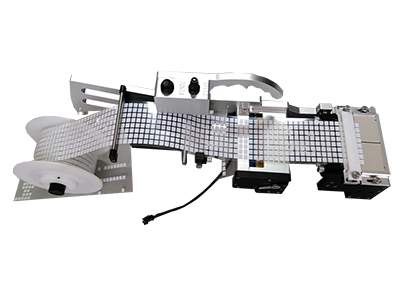

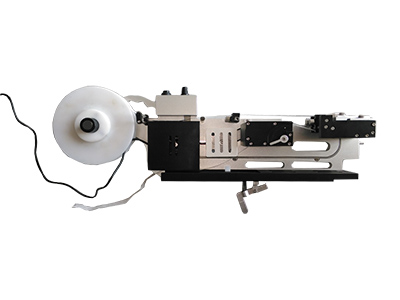

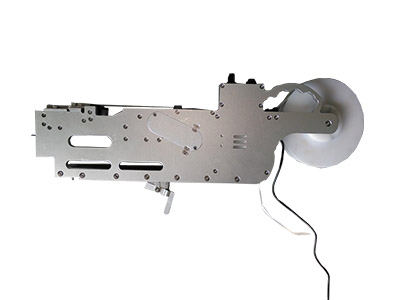

The Assembleon label feeder peels labels from their backing and presents them to the machine as if they were standard components, eliminating the need for manual labeling or separate label applicator hardware .

Key Features
High Speed and Accuracy: Labels are placed at the same rate and precision as normal SMT components, significantly reducing labor costs and errors compared to hand placement .

Wide Compatibility: Supports motorized and CL/FV feeders on various Assembleon machines, with optional customization for specific machine models.

Versatile Label Handling: Can handle adhesive labels, distance pads, shields, thermal conduction pads, Kapton dots, metal sheets thicker than 1mm, and other special components.

Customizable Liners: Available liner widths are 50mm, 85mm, and 100mm, with custom widths available. Some models can peel and present multiple labels in one pass for enhanced productivity.

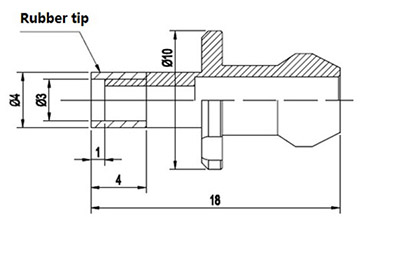

Customized Nozzles: Specially designed nozzles can be manufactured to handle unique label shapes or sizes, based on datasheets or samples provided by the user.

Low Maintenance: Requires no specialized programming or training, and maintenance costs are minimal compared with inline applicators or laser marking solutions.
