Mirae SMT feeders are precision components for Surface Mount Technology (SMT) pick-and-place machines, specifically designed for Mirae's MX and MR series. These feeders regulate and deliver electronic components from tapes, sticks, or trays into the machine for high-speed assembly.
Key Feeder Models
Mirae utilizes several generations of feeder technology to support diverse manufacturing needs:

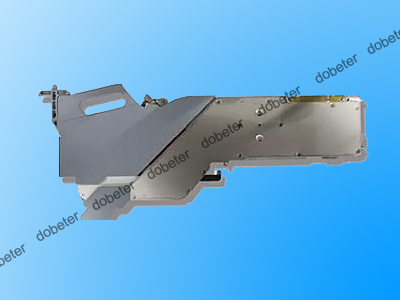

eX-Feeder (Intelligent Feeder): This 3rd generation electrical feeder features a motor and gear system. It offers faster feeding speeds (approx. 60 ms) and automatic on-machine calibration, which significantly increases productivity.

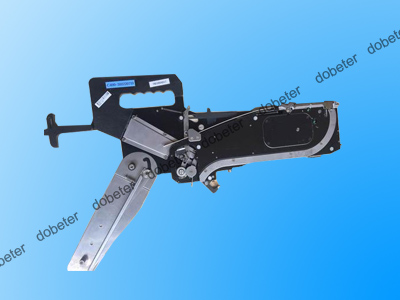

C-Type Tape Feeders: These are common standard feeders available in a wide range of tape widths, including 8mm (2p/4p), 12mm, 16mm, 24mm, 32mm, 44mm, 56mm, 72mm, and 88mm.
Specialized Feeders:
Radial/Axial Feeders: Designed for vertical or horizontal reel-type components with lead cutting and bending options.
Vibratory Stick Feeders: Use air or vibration to feed components supplied in sticks or tubes.
Tray Feeders (TF5/SLTF/DLTF): Efficiently supply multiple JEDEC trays, with the SLTF unit supporting up to 20 large trays.
Bowl Feeders: Used for bulk components, with vibration systems controlled by a PLC.
Technical Specifications & Features
Compatibility: Mirae feeders are compatible with modular gantry machines like the Mx350, Mx310, MPS1030, 1025, 1020, 1010 Mx240, MPS1020QP ...
Programmable Speed: The eX-feeder includes nine programmable feeding speeds to accommodate different component types.

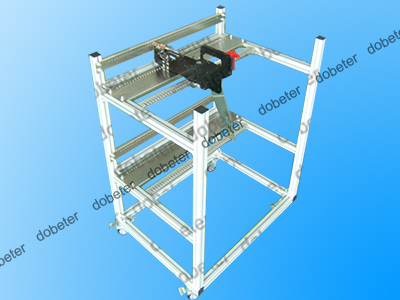

Offline Setup: Mirae offers Offline Feeder Setup (OFS) software and trolleys, allowing operators to prepare feeder configurations while the machine is running, thereby minimizing changeover downtime.
High Precision: They are designed to handle components as small as 01005 (0402 metric) with high placement accuracy.

Delivery lead time :　in stock

Payment : TT , PayPal, CreditCard, Western Union

MOQ : 1PCS
