Yamaha feeder loading unit

A Yamaha feeder loading unit is used to simplify the process of loading component reels into SMT feeders, improving efficiency and reducing labor in high-speed PCB assembly.
Overview

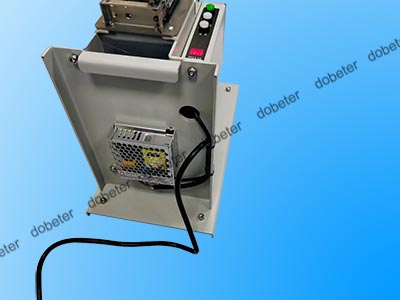

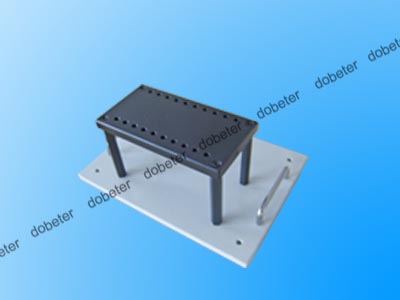

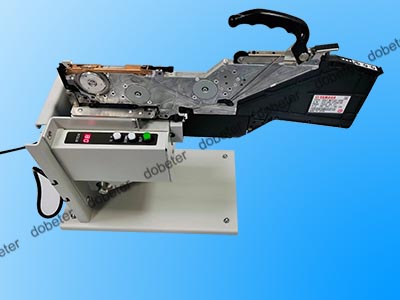

Yamaha feeder loading units are specialized tools designed to install component reels into feeders and then mount the feeders onto Yamaha SMT machines with ease
These units reduce manual labor, prevent setup errors, and allow faster preparation of SMT lines, ideal for high-volume or mixed-product PCB assembly.
Types and Compatibility
Yamaha provides two main types of feeder loading units:
FV/CL series feeder loading units: Compatible with Yamaha CL and FV feeders used on machines such as Topaz, Sapphire, MG series, EMERALD, and Opal. These units handle CL/FV feeders of various widths from 8mm to 72mm

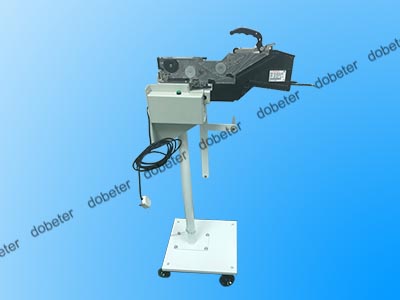

ZS and SS series feeder loading units (KHJ-MD200-00): Designed for Yamaha SMT machines using ZS and SS feeders like YG12, YG12F, YS12, YS12F, YSM10, YSM20, YS24, YS24X, and YG300. These workstation-compatible units are suitable for various tape-feeder widths, from 4mm to 88mm, and support standard reel handling
