Panasonic Feeder Calibration Jig

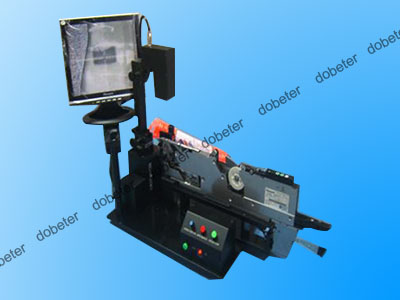

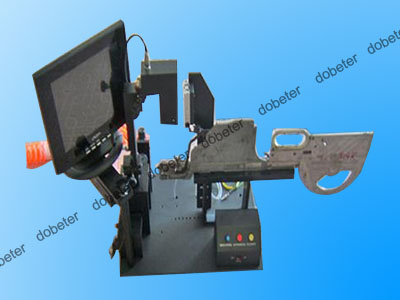

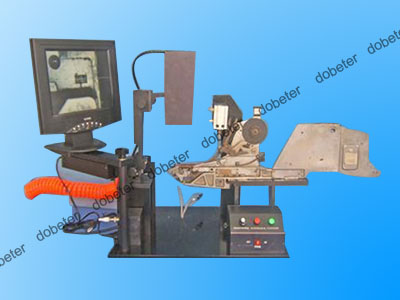

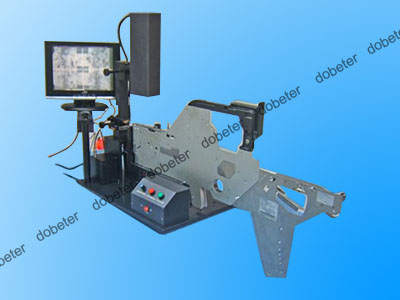

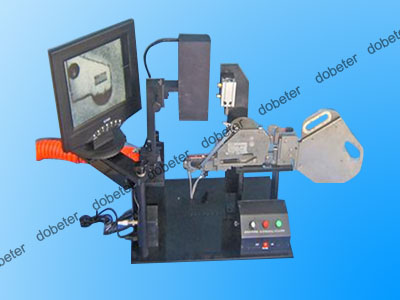

we supply many kinds of panasonic feeder calibration such as panasonic feeder calibration for bm mpagg3 mpav2 mpav2vb, panasonic feeder calibration for cm88, panasonic feeder calibration for cm402 cm602, panasonic feeder calibration for msh2 msh3, panasonic feeder calibration for msr, panasonic feeder calibration for MV MV2F MV2VB Q feeder, panasonic feeder calibration for MV MV2F MV2VB K feeder and so on.

Panasonic feeder calibration jigs are essential tools for ensuring the precise alignment and performance of feeders used in SMT (Surface Mount Technology) production lines. They are available from various SMT equipment suppliers and can be found for different Panasonic feeder series, including CM, NPM, and MSR models.
Core Functions
Compatible Feeder Types: The jigs are model-specific, supporting various series like NPM, DV, CM, HM, and MSR. It is crucial to match the jig to the exact feeder model.
Pickup Position Calibration: Verify and adjust component pickup coordinates (X-Y-Z) to ensure alignment with nozzle center
Feeding Accuracy Test: Check step feeding precision (pitch accuracy) for tape feeders, typically within ±0.02mm tolerance
Sprocket & Indexing Adjustment: Align sprocket teeth with tape pockets to prevent component jams or misalignment
Eject Pin Calibration: Adjust eject pin height and timing for proper component release from tape
Firmware Update: Upgrade feeder control board software for NPM/CM series intelligent feeders
Sensor Calibration: Test and adjust feed sensors (component presence, tape end, splice detection)
Vibration Adjustment: For stick/vibratory feeders, optimize amplitude and frequency for different component sizes

Delivery lead time :　in stock

Payment : TT , PayPal, CreditCard, Western Union

MOQ : 1PCS
