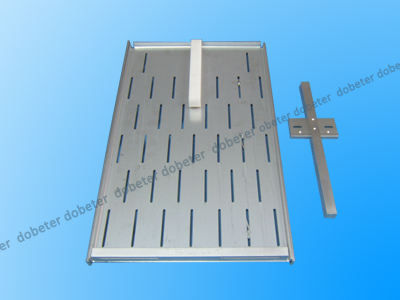

Assembleon Tray Feeder

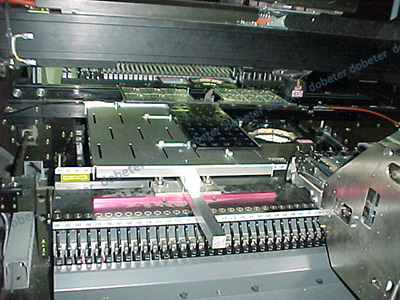

The Assembleon Tray Feeder is a device used in Assembleon SMT pick-and-place machines to hold and present ICs or electronic components in trays, enabling precise component placement on PCBs.

Types and Compatibility
There are two main types of Assembleon Tray Feeders based on machine compatibility
Topaz, Sapphire, MG, EMERALD, and COMET series feeders – These are compatible with machines such as Topaz, Topaz X, Topaz XII, Sapphire-XII, MG1, MG2, EMERALD series, among others
MC-Series feeders – Designed for MC-1, MC-5, MC-8, MC-12, and other MC-Series machines

Features and Capabilities

Easy Installation and Removal: Feeders can be mounted or dismounted quickly, simplifying setup

High Component Capacity: Certain systems, like the MG-1, support up to 60 trays in quick-change magazines

Real-Time Inventory: Advanced feeders with RFID technology can track component presence and quantities, supporting just-in-time production and reducing errors

Integration with Machine Vision: Tray feeders work seamlessly with vision systems to ensure accurate component pickup from trays. This includes adaptive pick-up and barcode/2D code-guided changeovers for fast production

Versatility: Feeders can handle a wide range of components, including odd form, tall components, and fine-pitch ICs
