pcb separator machine Model : DBE-PS-2000
  • pcb separator machine
Specification and Features of pcb separator machine Model : DBE-PS-2000 :
Max. Separation Width 200 mm
PCB thickness 0.5~3 mm
Feed rate 200,300,400,500mm/s
Blade material Sweden HSS SKH-7
Size 340*340*420 (L*W*H)
Power AC220V, 50HZ, 30W
Weight
30 kg

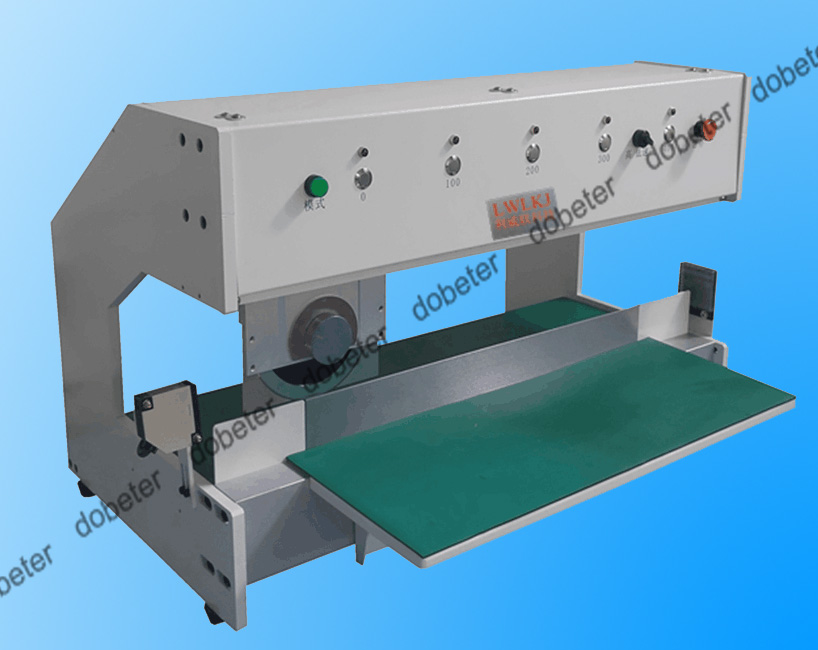

pcb separator machine Model : DBE-PS-3000
pcb separator machine

  • PS-3000 pcb separator machine

Specification and Features:
Max. Separation Length 400 mm
PCB thickness 0.3~3.5 mm
Feed rate 300,400,500mm/s
Blade material Sweden HSS SKH-7
Size 700*550*460 (L*W*H)
Power AC110V-220V, 50HZ, 30W
Weight 63kg


pcb separator machine : DBE-L100

pcb separator machine

pcb separator machine Model : DBE-L100

Characteristics:

1.Minimize the internal stress generated when cutting the PCB board  to avoid tin crack
2.The board is placed under the point of the knife. Push the hahndle , the knife split the board up.
3.The board is fixed when spliting. Only the knife moves to avoid the parts to be damaged by moving.
4.The distance between two knives can be adjusted accurately in case of tool wear or the irregular depth of the groove.
5.The machine applies to both thin and thick boards, easy for operating.

Specifications
1.maximum of board length: 200mm
2.board thickness        :0.4~3mm
3.speed of sending board  : it depends
4.material of knife         :HSS
5.Volume                :580mm(L) ×380mm(W) ×250mm(H)
6.weight                 :15kg
