Yamaha Feeder Calibration Jig

Yamaha Feeder Calibration Jig

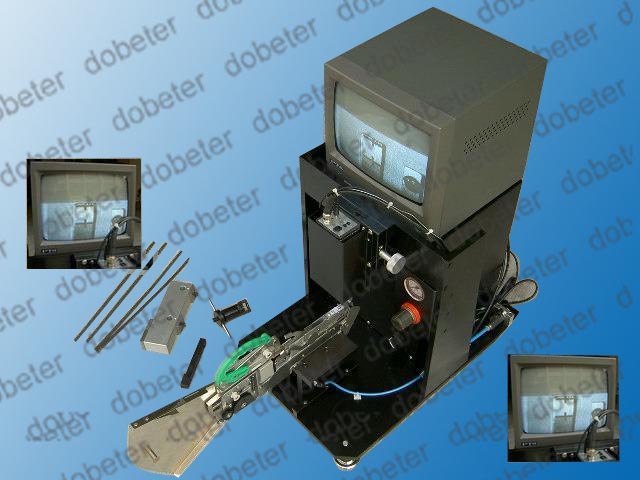

we provide you yamaha CL feeder 8X2,8x4 16mm 32mm,44mm,56mm copy feeder. we also supply you Yamaha Feeder Calibration Jig Jig, which is used to calibrate yamaha CL feeder , yamaha fv feeder.Yamaha Feeder Calibration Jig Jig is very easy for you to use, put a steel strip with cross, it can make the feeder move as it is on the yamaha smt machine, on the sreen you can see the cross, whether is in the right position, if not, you need to calibrate the feeder.

Delivery lead time :　in stock

Payment : TT , PayPal, CreditCard, Western Union

MOQ : 1PCS

FacebookTwitter Linkedin Google + Email

YAMAHA SS ZS FEEDER TUNE-UP STATION

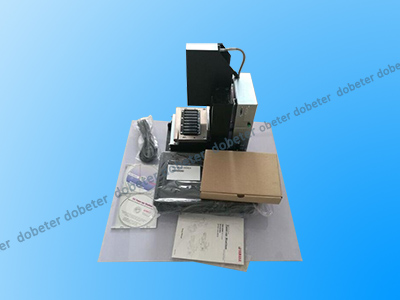

YAMAHA SS ZS FEEDER TUNE UP STATION KHJ-MD800-00

YAMAHA SS ZS FEEDER TUNE UP STATION KHJ-MD800-00

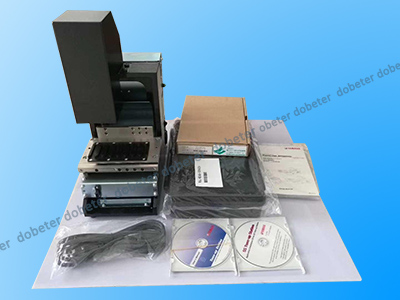

YAMAHA SS ZS FEEDER TUNE UP STATION KHJ-MD800-000

YAMAHA SS ZS FEEDER TUNE UP STATION KHJ-MD800-000

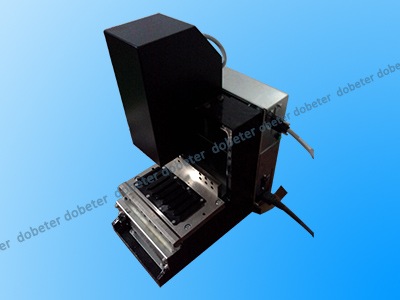

YAMAHA SS ZS FEEDER TUNE UP STATION KHJ-MD800-010

YAMAHA SS ZS FEEDER TUNE UP STATION KHJ-MD800-010

yamaha feeder calibration -DBE-FCJ-YMH-NEW

Yamaha Feeder Calibration Jig

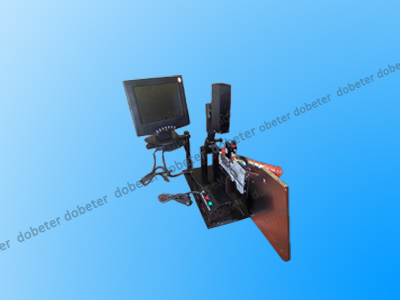

1：Product Name:Intellectual Feeder Calibration Jig
2：Model：DBE-FCJ
3: Characteristic
* Easy to manipulate.
* Quite different with the traditional feeder calibration jigs, it has no axixes and guides, just adjust buttons you can move focus with ease, so more durable
* Actual feeding like machine running can be simulated. Also you can control it manually.
* High Definition Industrial CCD with magnifying power 50
* Through a monitor, capable to calibrate all different Sizes and different kinds of feeders using the built-in Line generator.
* Verify and calibrate feeders correctly by using master steel tapes.
* Ligth, beautiful and more durable。
4: Available for feeders such like Panasonic , Fuji , Juki , Yamaha ,Samsung , KME , Siemens , Sanyo etc
5: Power AC 110V / 220V 60W
6: Air pressure:4-5kg/cm2
7: Volumne：530mm(L)×350mm(W)×580mm(H)
8: Net Weight ：22 Kg; Gross Weight : 36Kg.

yamaha feeder calibration -DBE-FCJ-YMH-TRD

Yamaha Feeder Calibration Jig

FEATURE

  1. 8-24mm width. Various parts cassettes can be checked.
  2. Actual feeding like machine running can be simulated
  3. 50X CCD; with LED lighting, appearance clearer.
  4. Speed of feeding can be adjusted
  5. Through a monitor, capable to calibrate all different Sizes and different kinds of feeders using the built-in Line generator.
  6. Capable to operate 1 pitch each with the manual Mode and calibrate. Able to test calibrated feeders with the auto function.
C. Specification

yamaha feeder calibration -KM8-M34E0-B1X

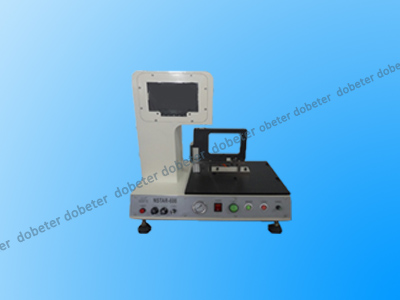

Yamaha SMT Feeder Calibration Jig

yamaha feeder calibration

Yamaha Feeder Calibration Jig Yamaha Feeder Calibration Jigs

Stainless steel Calibration Strip for CL /FV feeders

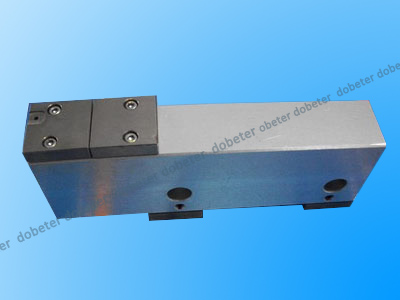

KM8-M34E0-B1X feeder jig assy

KM8-M34E0-B1X feeder jig assy

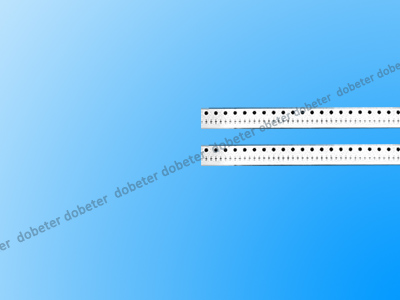

KJ3-MY072-10X Stainless steel Calibration Strip 8mm

KJ3-MY072-10X Stainless steel Calibration Strip 8mm

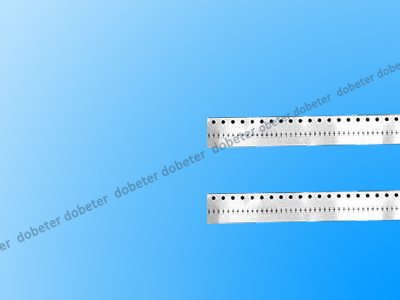

KJ3-MY082-10X Stainless steel Calibration Strip 12mm

KJ3-MY082-10X Stainless steel Calibration Strip 12mm

Stainless steel Calibration Strip for SS /ZS feeders
