Juki Feeder Calibration Jig
Our JUKI Feeder Calibration Jig is easy to manipulate. It can feeding like machine running can be simulated. Also you can control it manually. It has High Definition Industrial CCD with magnifying power 50. You can verify and calibrate feeders correctly by using master steel tapes,press auto Mode button, the feeder will moves continueously.
Delivery lead time : in stock
Payment : TT , PayPal, CreditCard, Western Union
MOQ : 1PCS

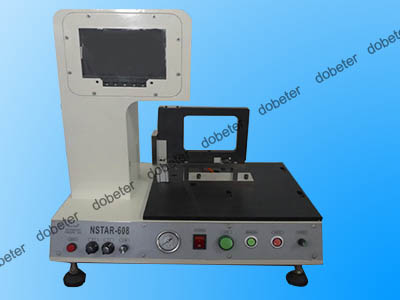

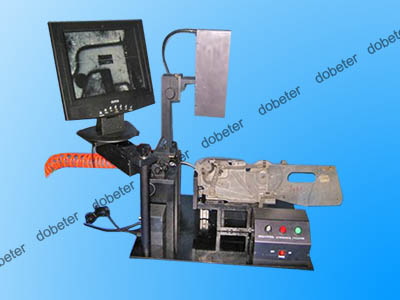

Juki Feeder Calibration Jig
juki feeder calibration jig-DBE-FCJ-JUKI-TRD
FEATURE
- 8-24mm width. Various parts cassettes can be checked.
- Actual feeding like machine running can be simulated
- 50X CCD; with LED lighting, appearance clearer.
- Speed of feeding can be adjusted
- Through a monitor, capable to calibrate all different Sizes and different kinds of feeders using the built-in Line generator.
- Capable to operate 1 pitch each with the manual Mode and calibrate. Able to test calibrated feeders with the auto function.
C. Specification
- Working Voltage
- Machine Size
- Machine Weight
- 220V/AC(50Hz) 60W
- 300*400*500 mm(Width * Length *Height)
- 45Kg
juki feeder calibration jig-DBE-FCJ-JUKI-NEW
1：Product Name:Intellectual Feeder Calibration Jig
2：Model：DBE-FCJ
3: Characteristic
* Easy to manipulate.
* Quite different with the traditional feeder calibration jigs, it has no axixes and guides, just adjust buttons you can move focus with ease, so more durable
* Actual feeding like machine running can be simulated. Also you can control it manually.
* High Definition Industrial CCD with magnifying power 50
* Through a monitor, capable to calibrate all different Sizes and different kinds of feeders using the built-in Line generator.
* Verify and calibrate feeders correctly by using master steel tapes.
* Ligth, beautiful and more durable。
4: Available for feeders such like Panasonic , Fuji , Juki , Yamaha ,Samsung , KME , Siemens , Sanyo etc
5: Power AC 110V / 220V 60W
6: Air pressure:4-5kg/cm2
7: Volumne：530mm(L)×350mm(W)×580mm(H)
8: Net Weight ：22 Kg; Gross Weight : 36Kg.
